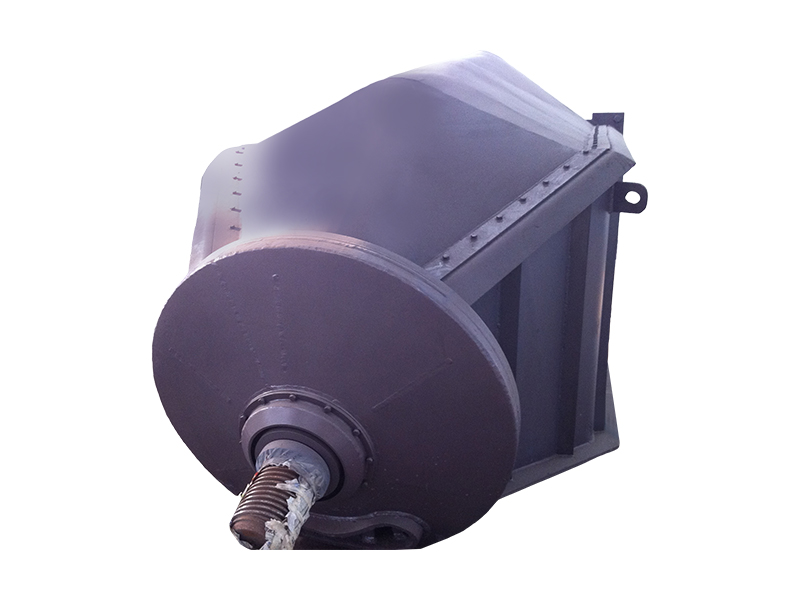

Dredge Cutter Head Cutter Drive Assembly

In dredging equipment, the cutter suction drive assembly, through innovative mechanical design and intelligent control technology, provides stable and reliable power support for the cutter suction equipment, becoming a core component that determines dredging efficiency.

The cutter suction drive assembly utilizes a multi-stage speed change and torque distribution principle to form a complete power transmission chain. The system first absorbs power fluctuations from the diesel engine or electric motor through a highly flexible coupling, then reduces the speed to an appropriate range (typically 20-30 rpm) via a planetary gear reducer. The drum gear coupling then transmits up to 500 kN·m of torque to the cutter shaft. During power transmission, a hydraulic clutch enables stepless speed regulation, allowing the cutter speed to be adjusted according to geological conditions. The lubrication system, with its forced circulation oil circuit, ensures stable operation of all transmission components.

This advanced transmission system is widely used in various dredging scenarios: in port channel maintenance, it can efficiently handle complex geological conditions including silt, clay, gravel and moderately weathered rock; in artificial island construction, its stable power output ensures the continuity of filling operations; in river ecological management, precise speed control enables clean dredging of bottom mud.
