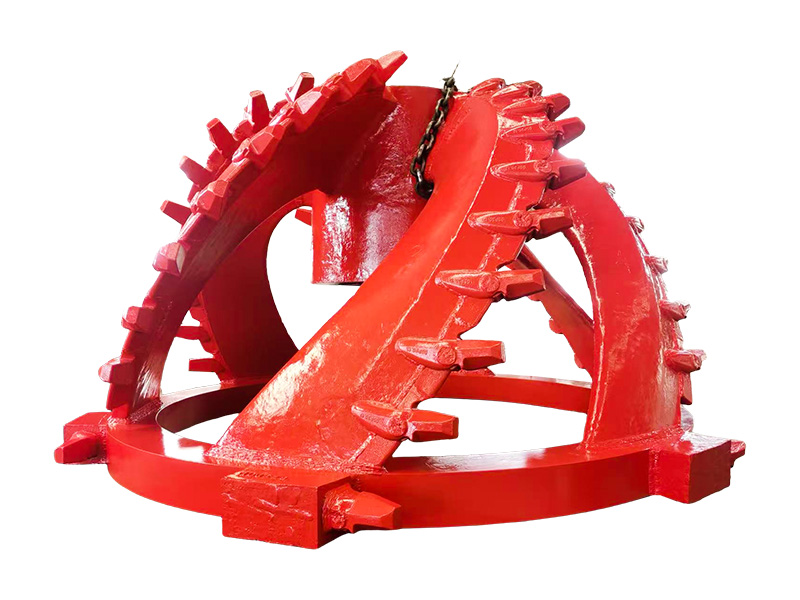

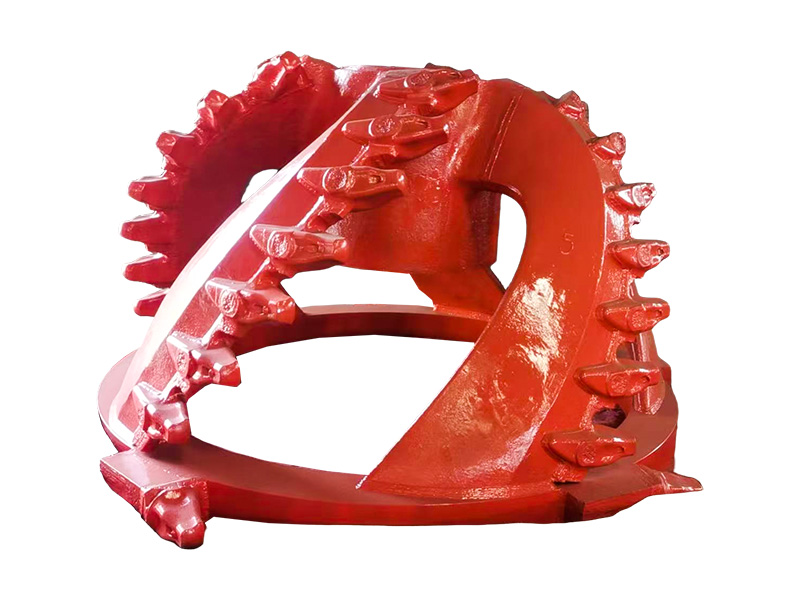

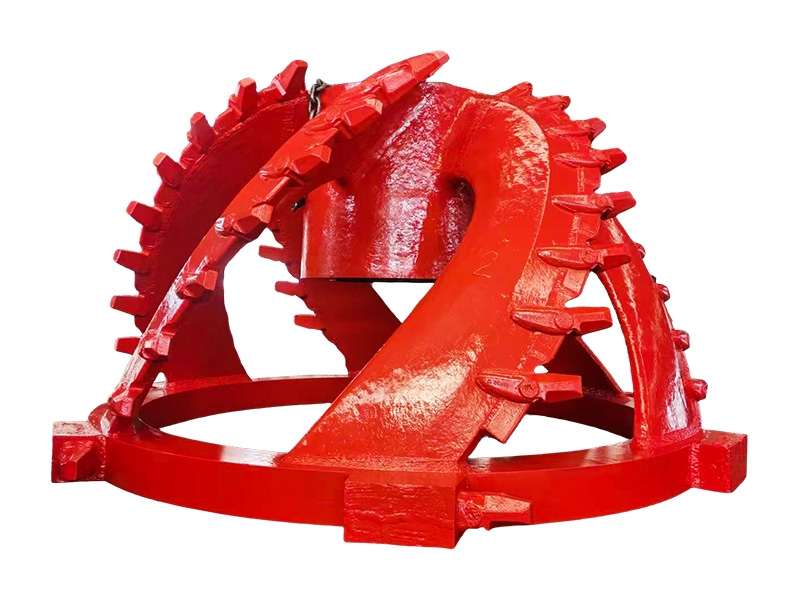

Dredge Cutter Head-Sanyang

Features:

Product No.	Suction Pipe DIA[mm]	Cutter Ring ID[mm]	Speed[r/min]	Blade Arms No.
1	φ250-300	830	0-34	5
2	φ350-400	955	0-35	5
3	φ350-400	955	0-30	5
4	φ400-450	1330	0-30	5
5	φ500-550	1550	0-30	5
6	φ600-650	1750	0-32	5
7	φ600-650	1750	0-30	5
8	φ600-650	1750	0-24	5
9	φ600-650	1830	0-30	5
10	φ650-700	2000	0-30	5
11	φ700-750	2150	0-30	6
12	φ800-850	2260	0-30	6
13	φ850-900	2330	0-30	6
14	φ900-950	2400	0-30	6

Options:

Features
The blades of the cutter head are double-curved to lead the material inside the cutter to the suction mouth
The cutter head had replaceable adapters welded to the blades
The hub is welded to the blades and has a trapezoid thread for mounting to the shaft
The cutter head has replaceable teeth

Options
The cutter head can be supplied with:
cutter shaft, cutter bearing, and cutter drive
additional cutter skirts on the blades to minimize spill
bars between the blades for preventing stoned to enter from the cutter into the suction mouth

Benefits
Exceptional wear resistance
Low cost per tonne production
Simplified maintenance

For peat, soft clay, loose sand and gravel, teeth with a wide front chisel are typically used. For firmer or harder ground, a tooth with a narrower chisel can be selected. For extremely hard ground and rock, pick point type teeth offer the most effective results.

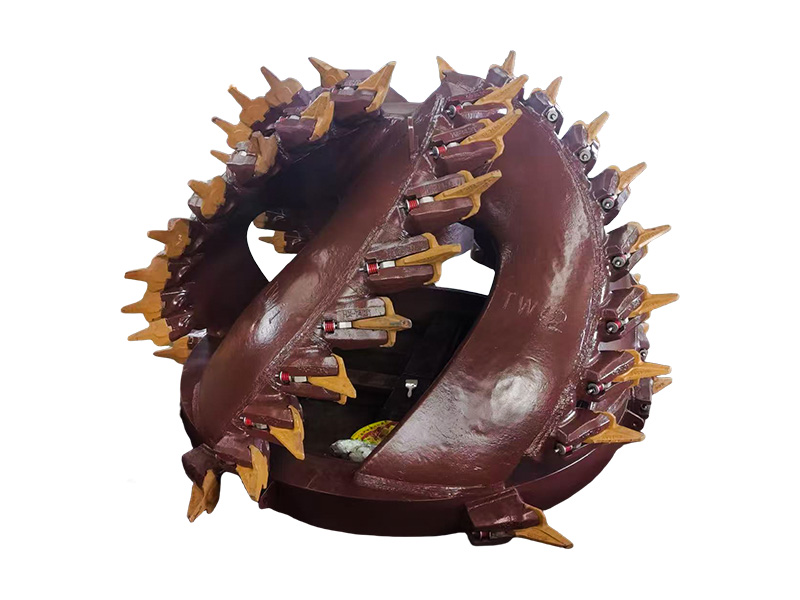

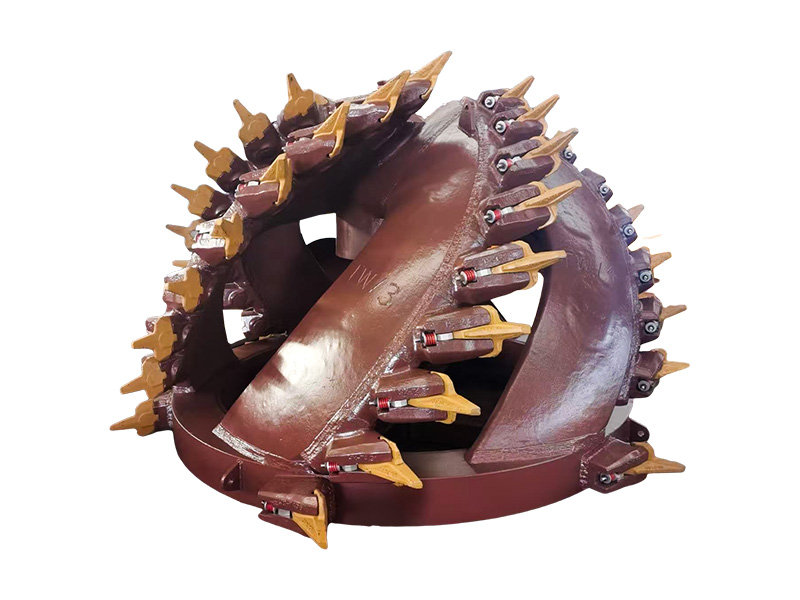

With replaceable teeth

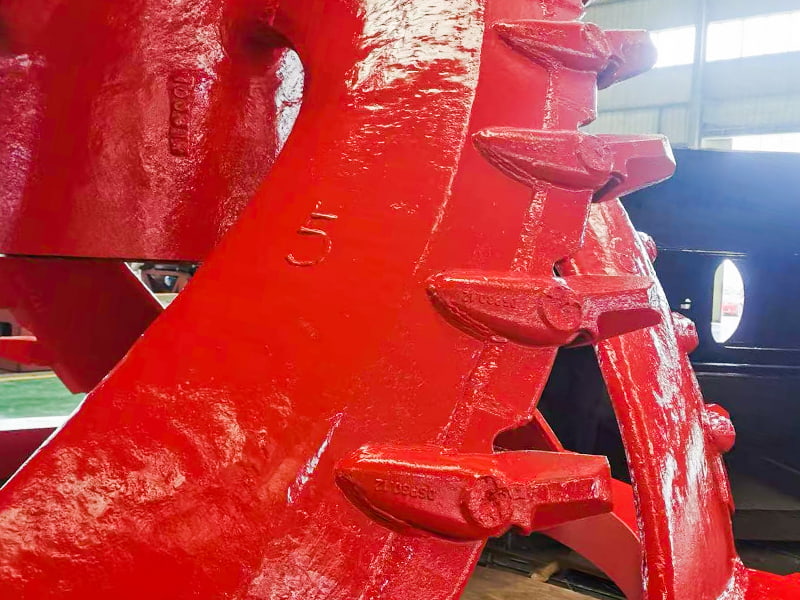

In the case of a toothed cutter, the adapters are welded on the front side of the cutter arm. The easily replaceable teeth are fitted on the adapters and fixed in place with a locking pin. When a tooth has to be replaced, the locking pin is removed with a punch. In this way, the tooth can be exchanged rapidly for a change in soil type or for maintenance purposes.
