Dredging Equipment
Dredging equipment is a specialized piece of engineering equipment designed for underwater excavation and sediment transportation. It is widely used in dredging projects in rivers, lakes, ports, waterways, and other waterways. Its core function is to remove silt, sand, gravel, pollutants, and other sediments from the bottom of the water body through excavation, suction, and transportation to maintain waterway navigability, improve water quality, and facilitate infrastructure development.
Dredging equipment is primarily used in waterway maintenance and construction, port and dock construction, mineral extraction, and beach maintenance.

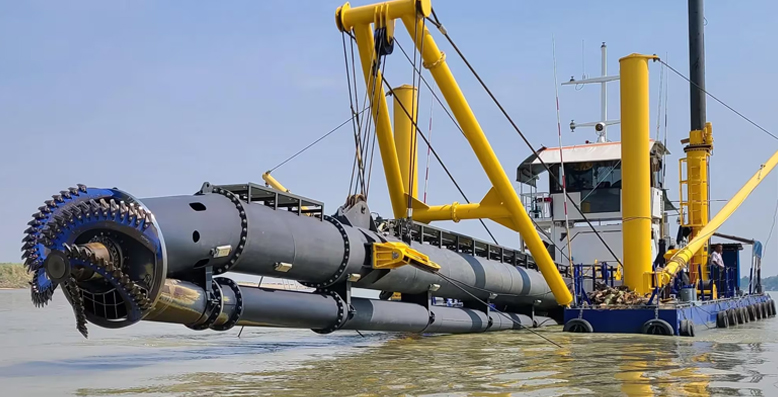

As the mainstay of underwater earthwork excavation, cutter suction dredgers can effectively handle a wide range of geological conditions, from soft silt to hard weathered rock. In major projects such as the Yangtze River Estuary Deepwater Channel Regulation, cutter suction dredgers have demonstrated their exceptional ability to handle complex geology. Furthermore, they can transport excavated material directly to a storage area several kilometers away via pipelines, achieving integrated excavation and transportation operations, significantly improving project efficiency.

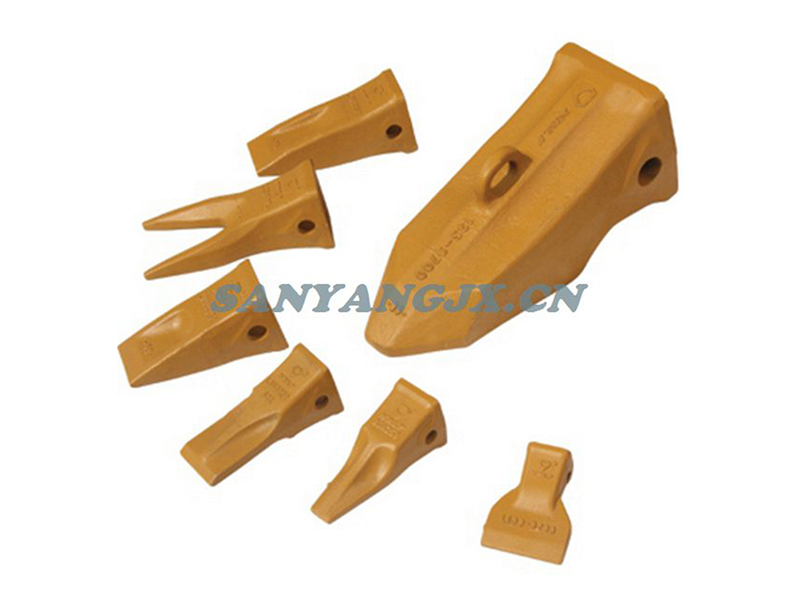

The efficient operation of cutter suction dredgers stems from their unique combined operating principle of "mechanical cutting + hydraulic conveying." The auger system at the front of the equipment is driven by a high-power motor and equipped with high-hardness alloy cutters, allowing for adjustable speed and torque to suit varying geological conditions. As the auger rotates and breaks up the soil, a powerful centrifugal pump generates a strong negative pressure that draws the crushed material out through a pipeline. The entire system is coordinated by a sophisticated positioning control system. DGPS positioning ensures a planar accuracy of ±10cm, and an automatic traverse system precisely controls the operating range, ensuring efficient and orderly dredging operations.
Modern cutter suction dredgers can operate continuously, enabling 24-hour operation and achieving equipment utilization rates exceeding 85%. In terms of economic benefits, the unit operating cost is 40-60% lower than traditional processes, which has a significant cost advantage. From an environmental perspective, the diffusion of suspended solids is reduced by 70% and noise pollution is reduced by 50%, which is more in line with the environmental protection requirements of modern engineering projects.

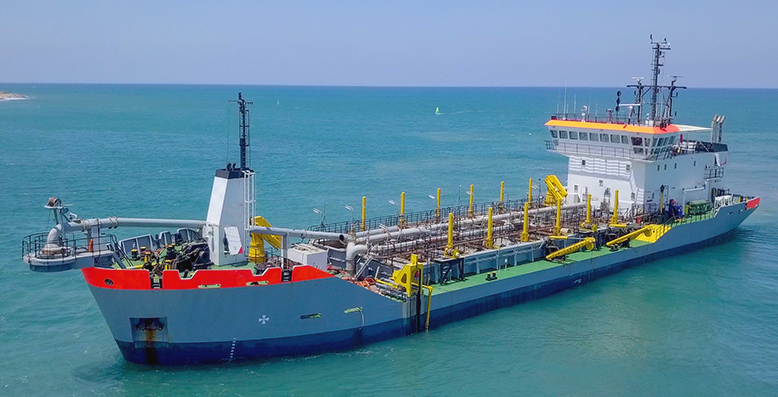

Trailing suction hopper dredgers play multiple important roles in dredging operations. As a workhorse for waterway maintenance, they effectively handle a wide range of bottom conditions, from soft silt to dense sand, operating at a maximum water depth of 50 meters. Their unique self-propulsion capability enables them to independently complete the entire process of excavation, loading, transporting, and dumping, significantly improving project efficiency. Furthermore, modern trailing suction hopper dredgers equipped with advanced control systems achieve centimeter-level dredging accuracy, ensuring precise dredging operations for waterway maintenance.
The trailing suction hopper dredger lowers its raking head to the seabed via raking arms on either side of the hull. High-pressure water jets on the raking head loosen the bottom, while a centrifugal pump generates a powerful negative pressure that draws the slurry into the vessel's hold through pipes. The entire system is coordinated by a sophisticated control system, with an automatic draft control system precisely adjusting the dredging depth for efficient and orderly dredging operations. Once fully loaded, the vessel self-propels to the dumping area, where material is discharged via bow jetting or bottom unloading.
