Dredge Turning Gland-Sanyang

Dredge Turning Gland

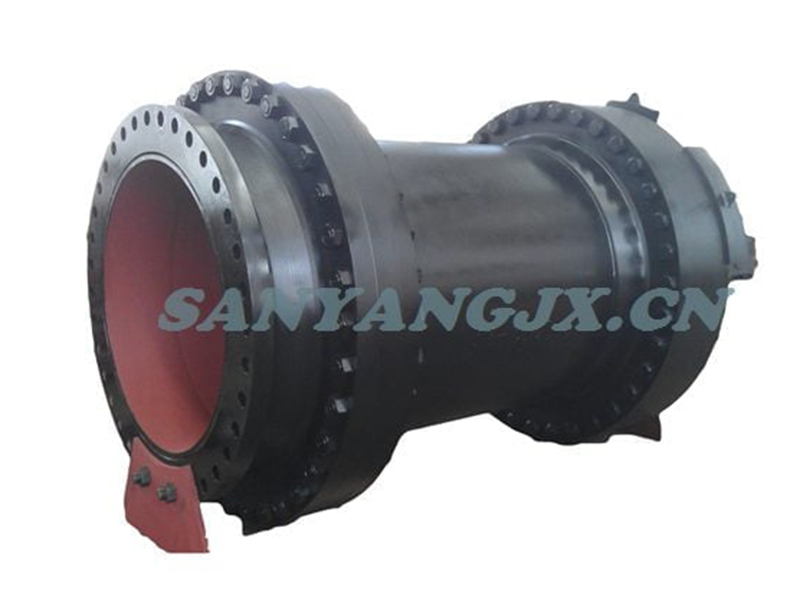

Sanyang Heavy Machinery dredge turning gland is for side suction pipe system of the trailing suction hopper dredger.Dredge turning gland is bolted between the lower suction pipe and the cardan hinge in a trailing pipe of a Trailing Suction Hopper Dredger.

It is designed by modular principle for heavy duty operation in any type of soil anywhere in the world. The turning gland enables the drag head to better follow.the sea bottom or ocean floor. The turning gland allows a radial rotation in both directions of 15°. The turning gland consists of an inner and an outer pipe and has mechanical stops to limit rotation. Two bearings and a sealing make for a trouble-free use.

Features:

Pipe Inside Diameter	Outside Diameter	Pitch Circle Diameter	Diameter of Bolt Hole	Bolt Quantity	Bolt Size	Flange Thickness	Over all Length	Total Weight
[mm]	[mm]	[mm]	[mm]		[mm]	[mm]	[mm]	[kg]
500	670	620	26	20	M24	38	1,500	1,320
600	780	725	30	20	M27	42	1,650	1,770
700	895	840	30	24	M27	50	1,800	2,382
800	1,015	950	33	24	M30	56	1,850	3,059
900	1,115	1,050	33	28	M30	62	1,900	3,652
1,000	1,230	1,160	36	28	M33	70	1,950	4,393
1,100	1,275	1,220	36	28	M33	76	2,000	5,047
1,200	1,455	1,380	39	32	M36	83	2,050	5,610
1,300	1,560	1,480	39	32	M36	83	2,100	6,753
1,400	1,675	1,590	42	36	M39	83	2,150	7,471
